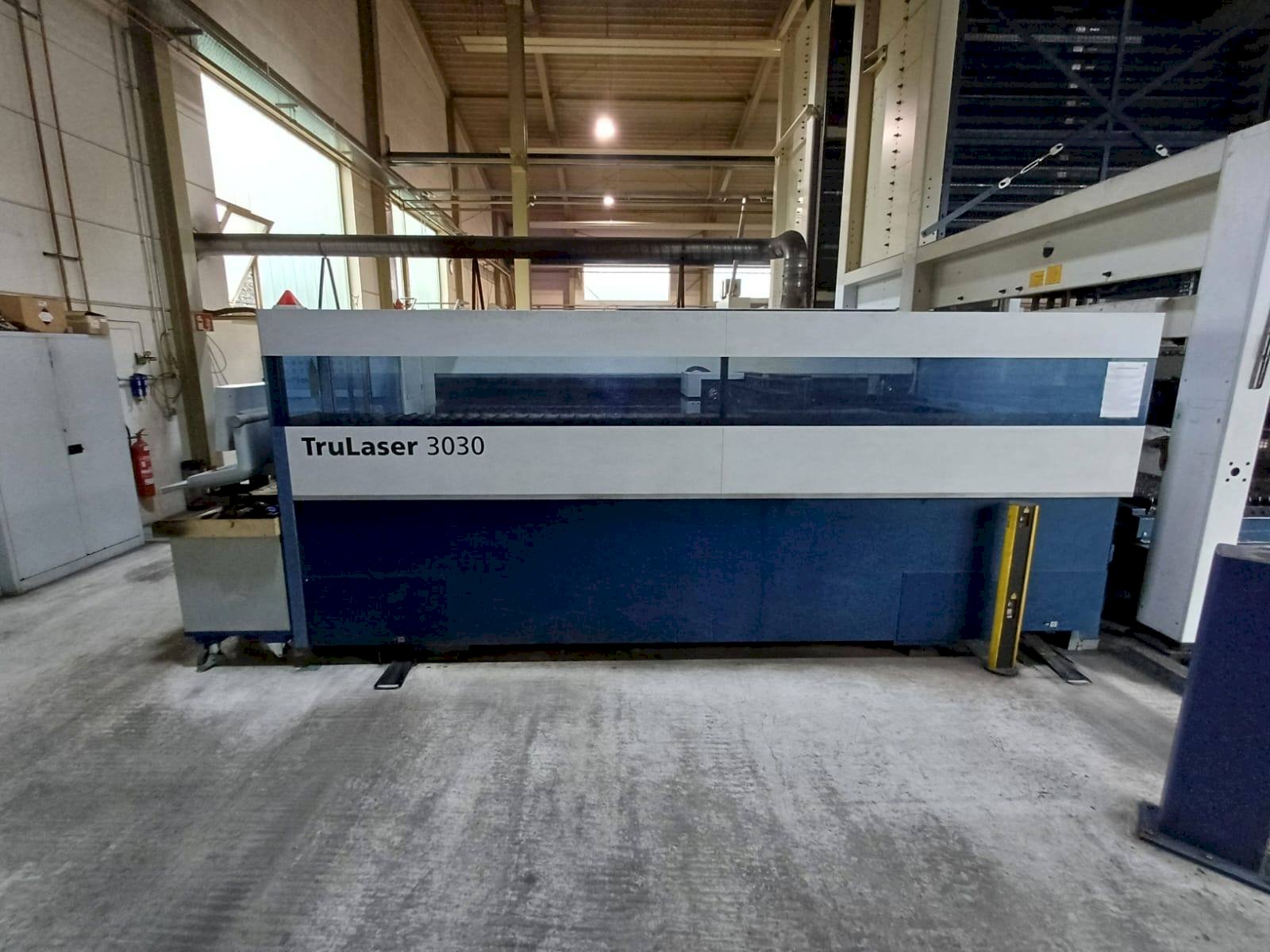

2012 TRUMPF TruLaser 3030 Laser cutting machine (CO2)

Ref. 3610475000
Brands TRUMPF
Models TruLaser 3030
Types of machine Laser cutting machine (CO2)
Category 2D Laser Cutting Machines
Year 2012
Availability Available
Request a quote

Technical Data

ControlSIEMENS SINUMERIK 840 SL
Dimensions (long x wide x high)9.300 x 4.700 x 2.200 mm
Laser Output3 kW
Laser TypeCO2
Machine ON Working hours37.181 h
Max. workpiece weight900 kg
Maximum material thickness aluminium8 mm
Maximum material thickness mild steel25 mm
Maximum material thickness stainless steel12 mm
Positioning speed X/Y140 m/min
Simultaneous positioning speed140 X+Y m/min
Weight11.000 kg
Working area (X x Y x Z)3.000 x 1.500 x 115 mm

Documentation

Video
