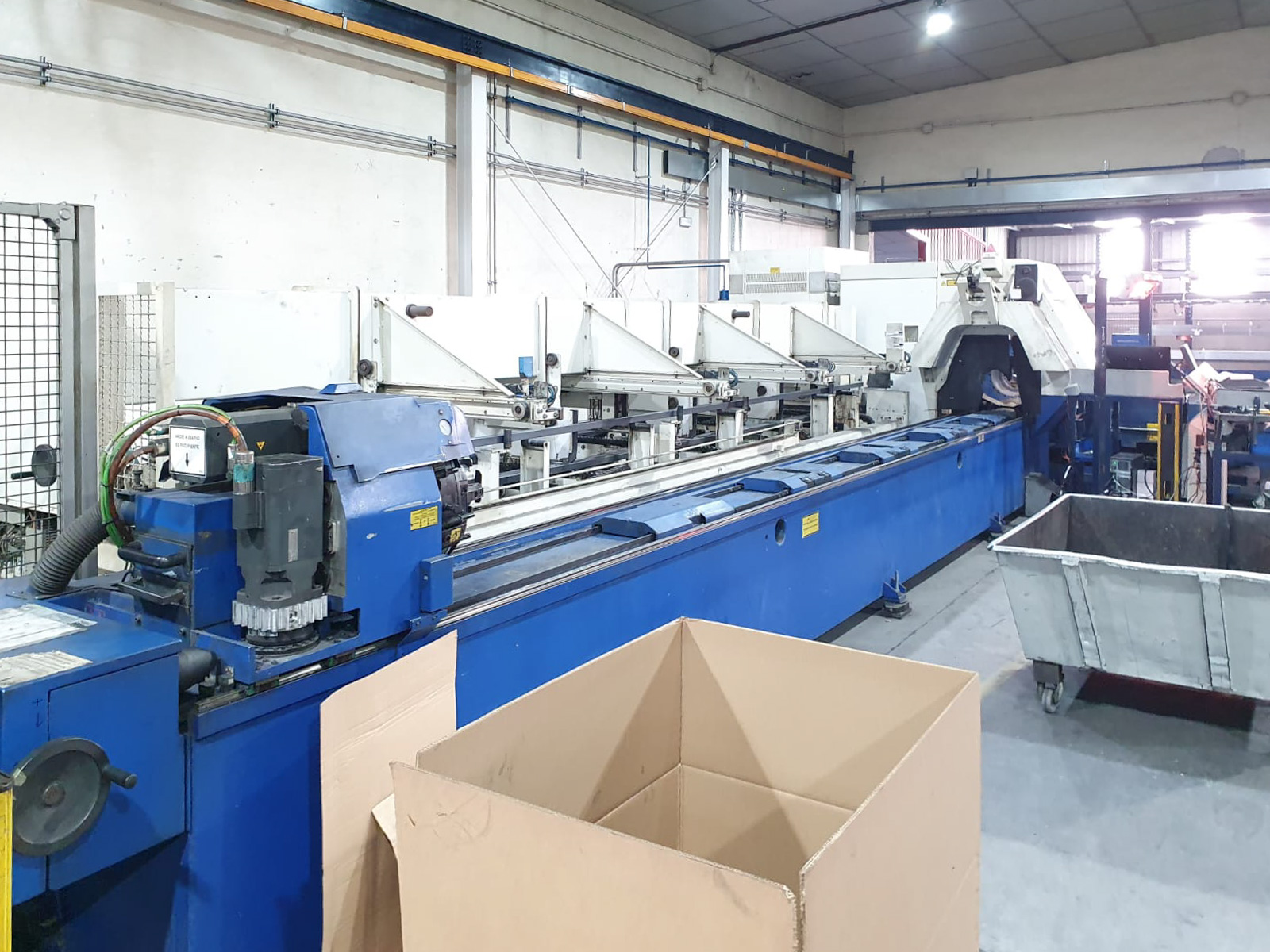

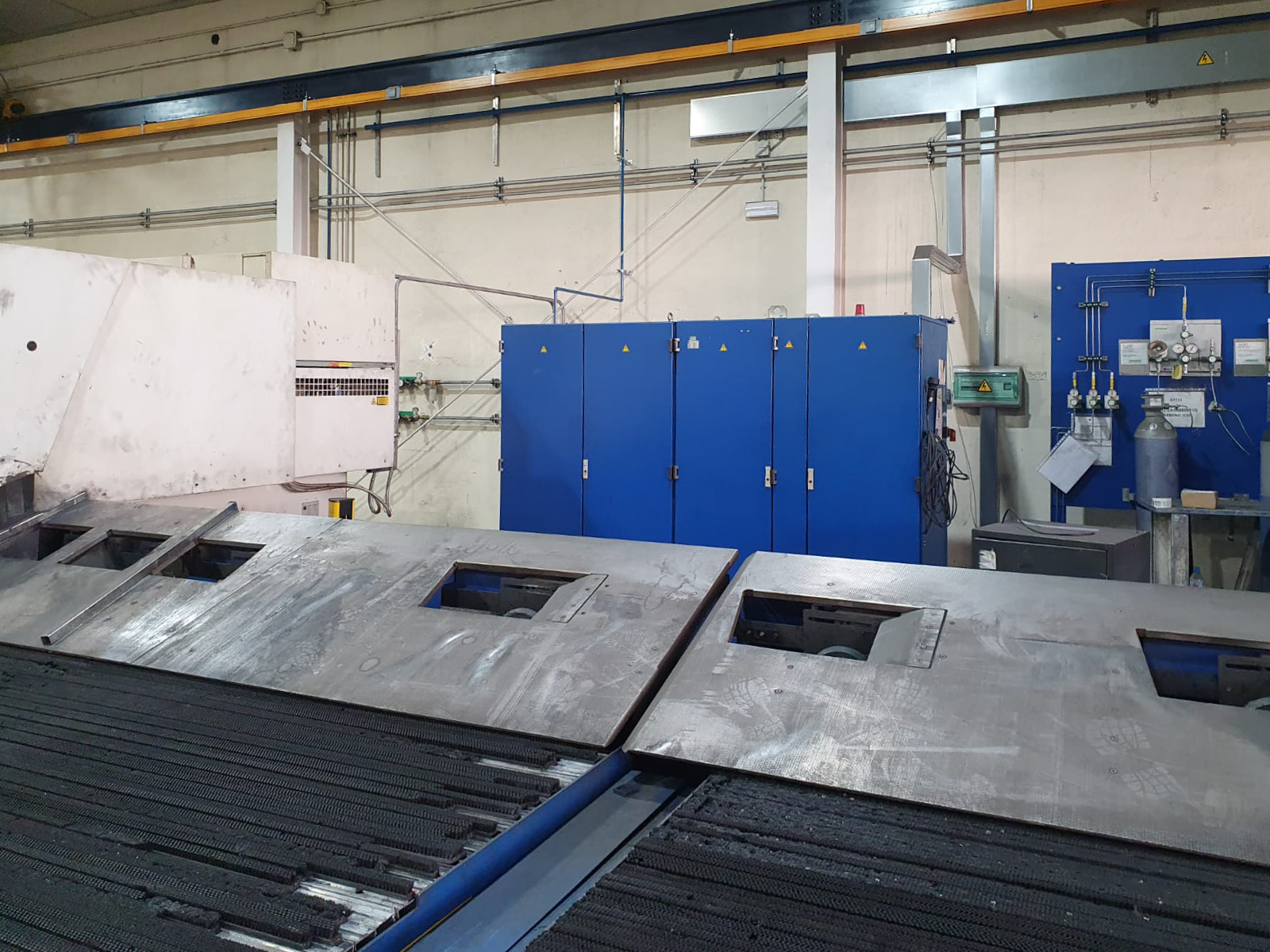

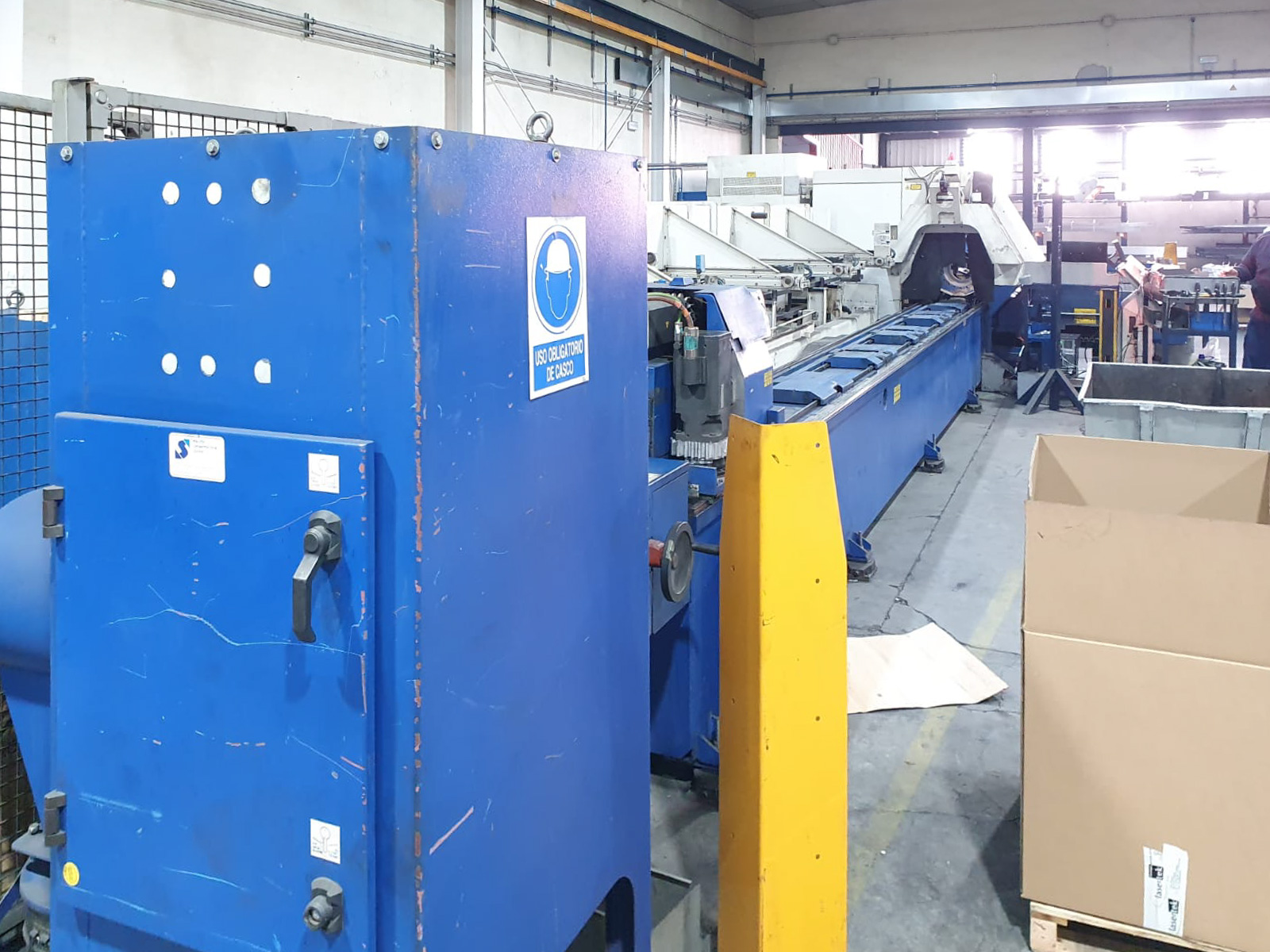

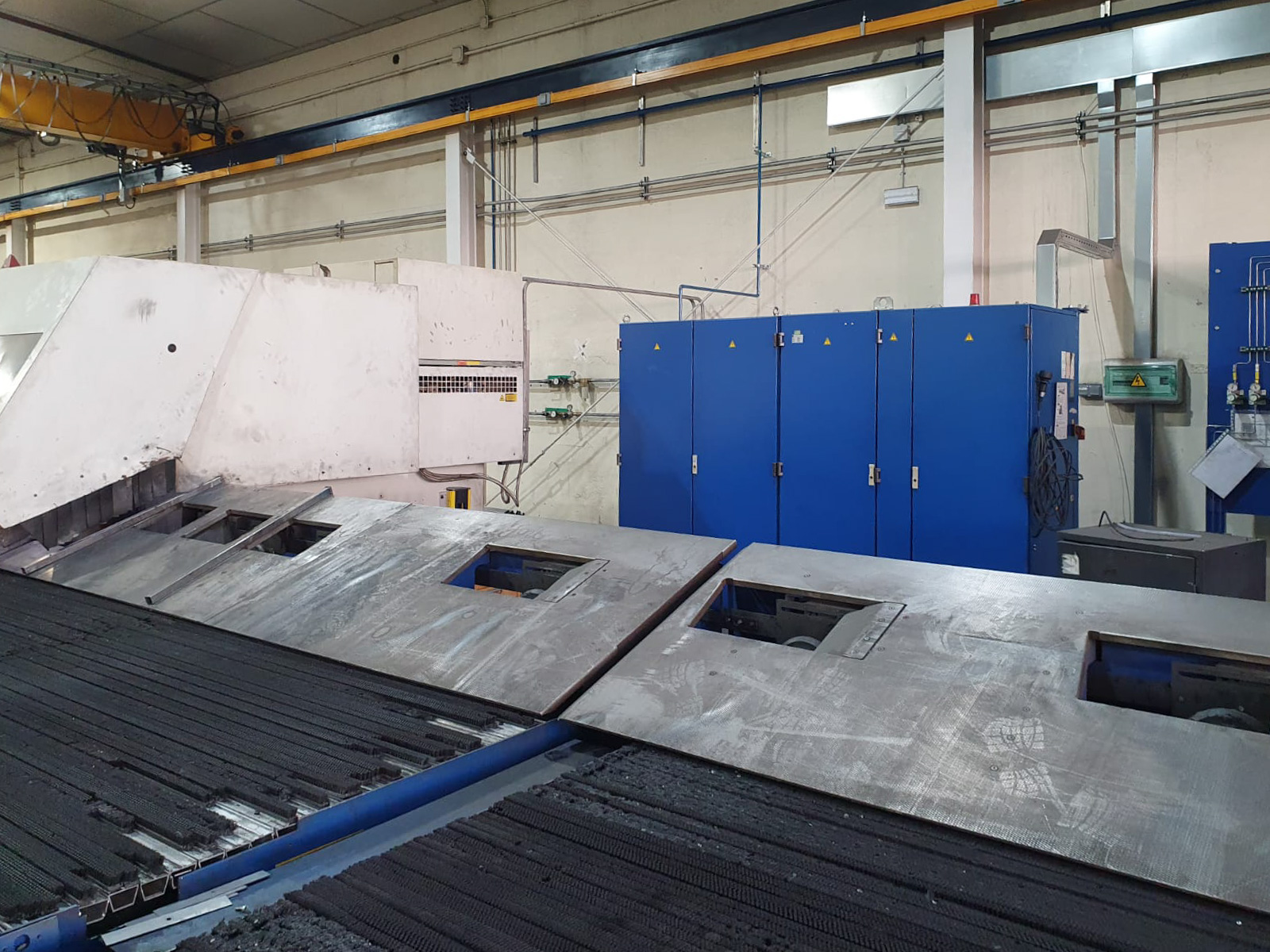

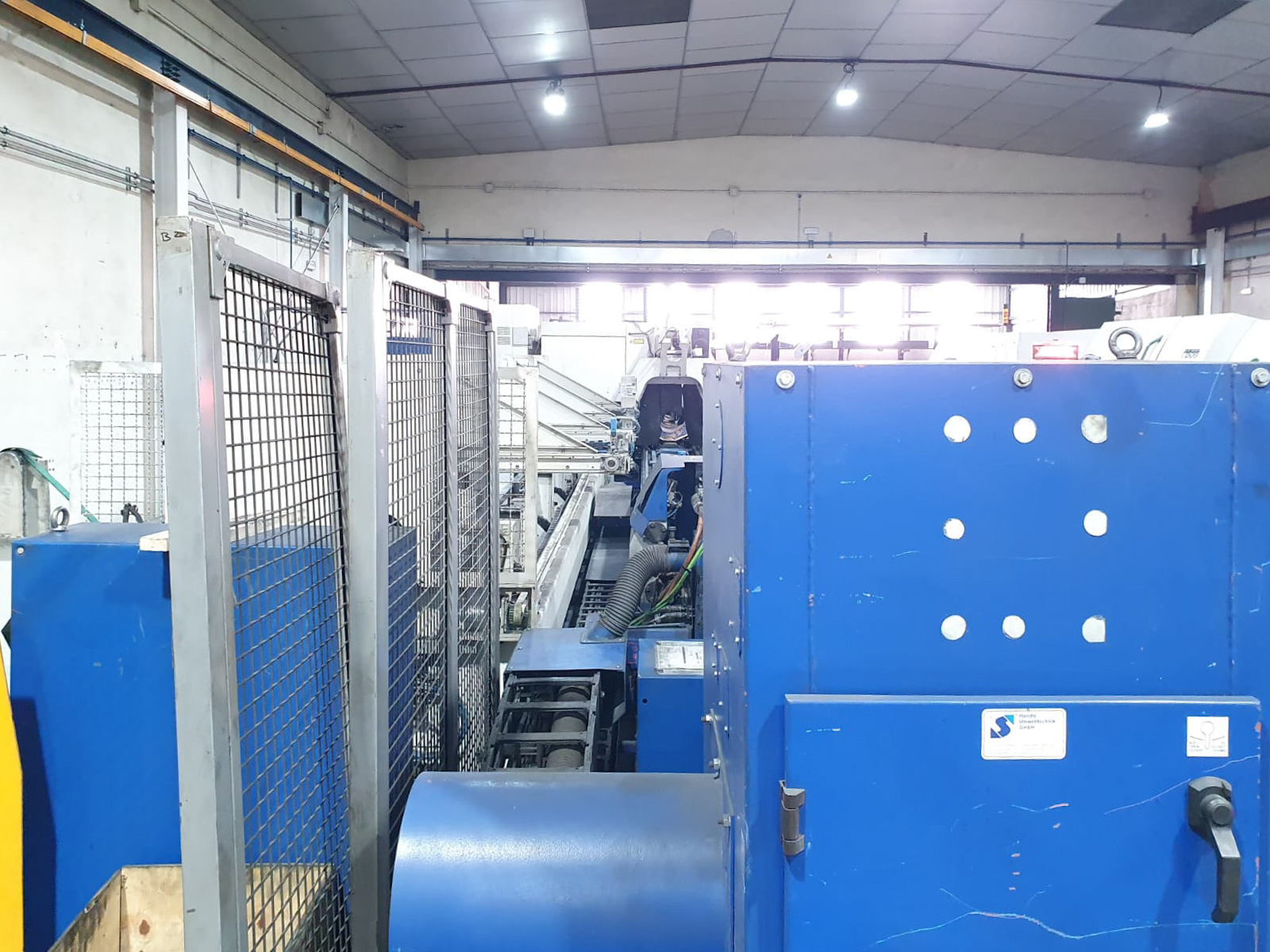

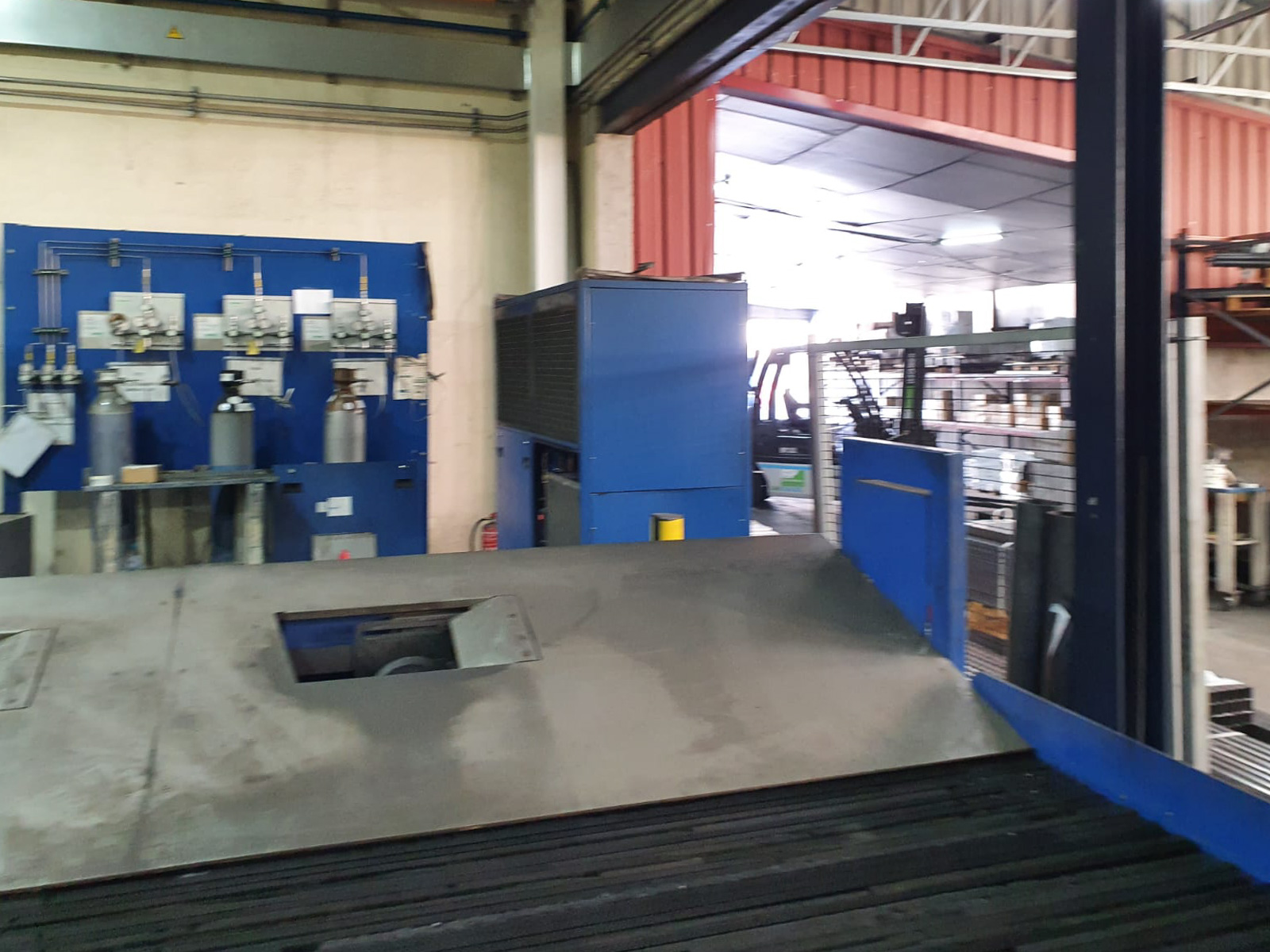

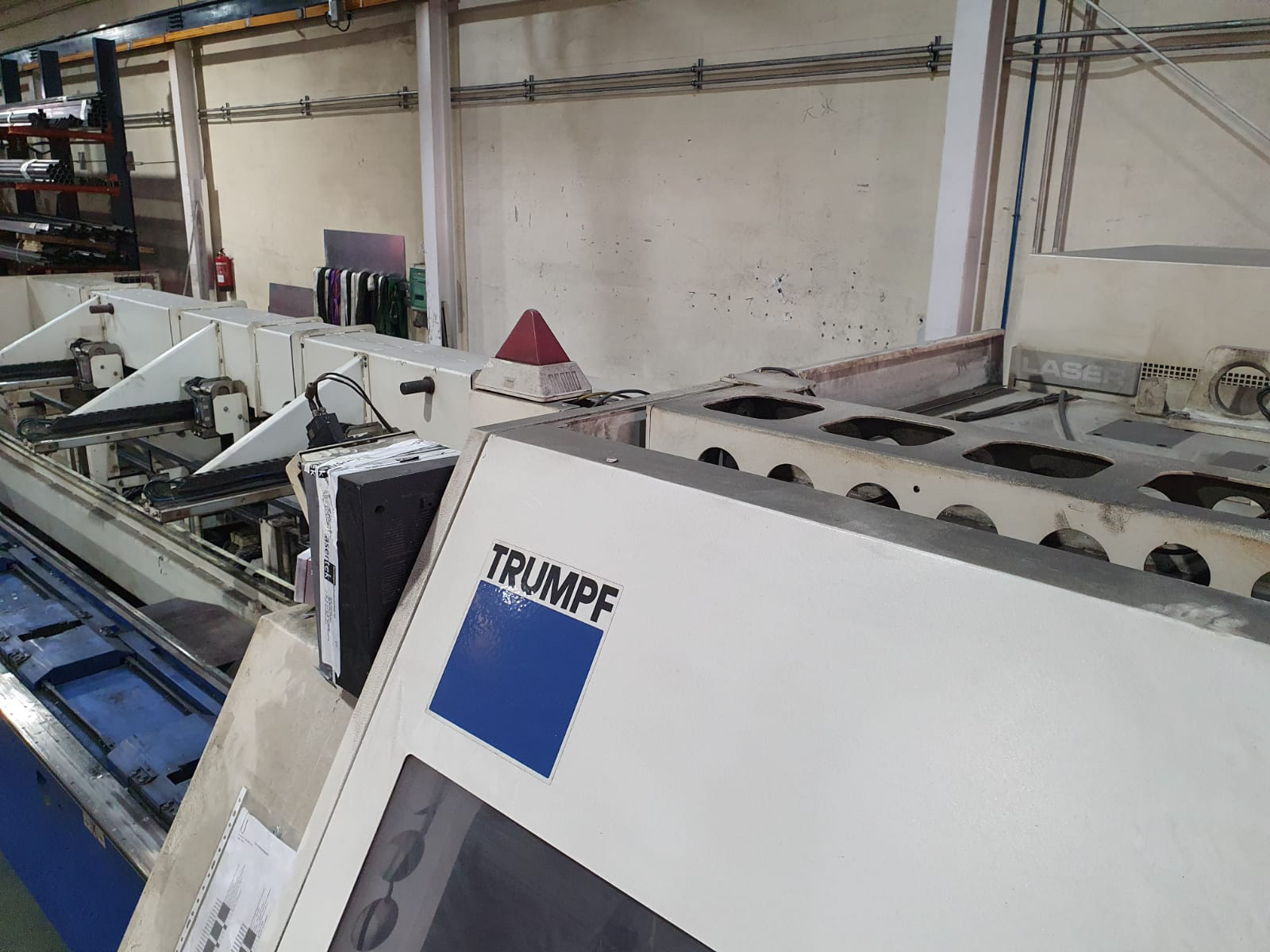

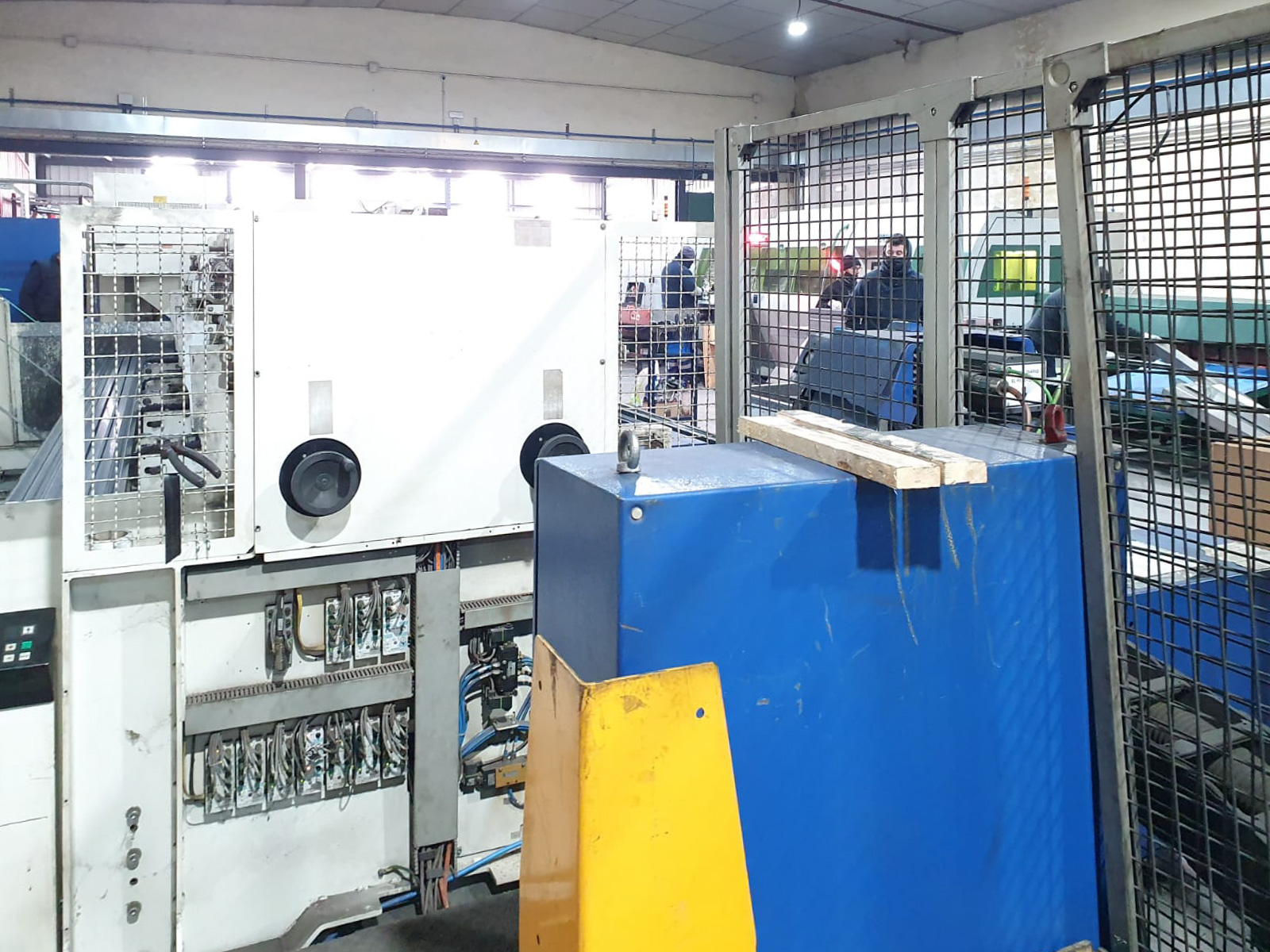

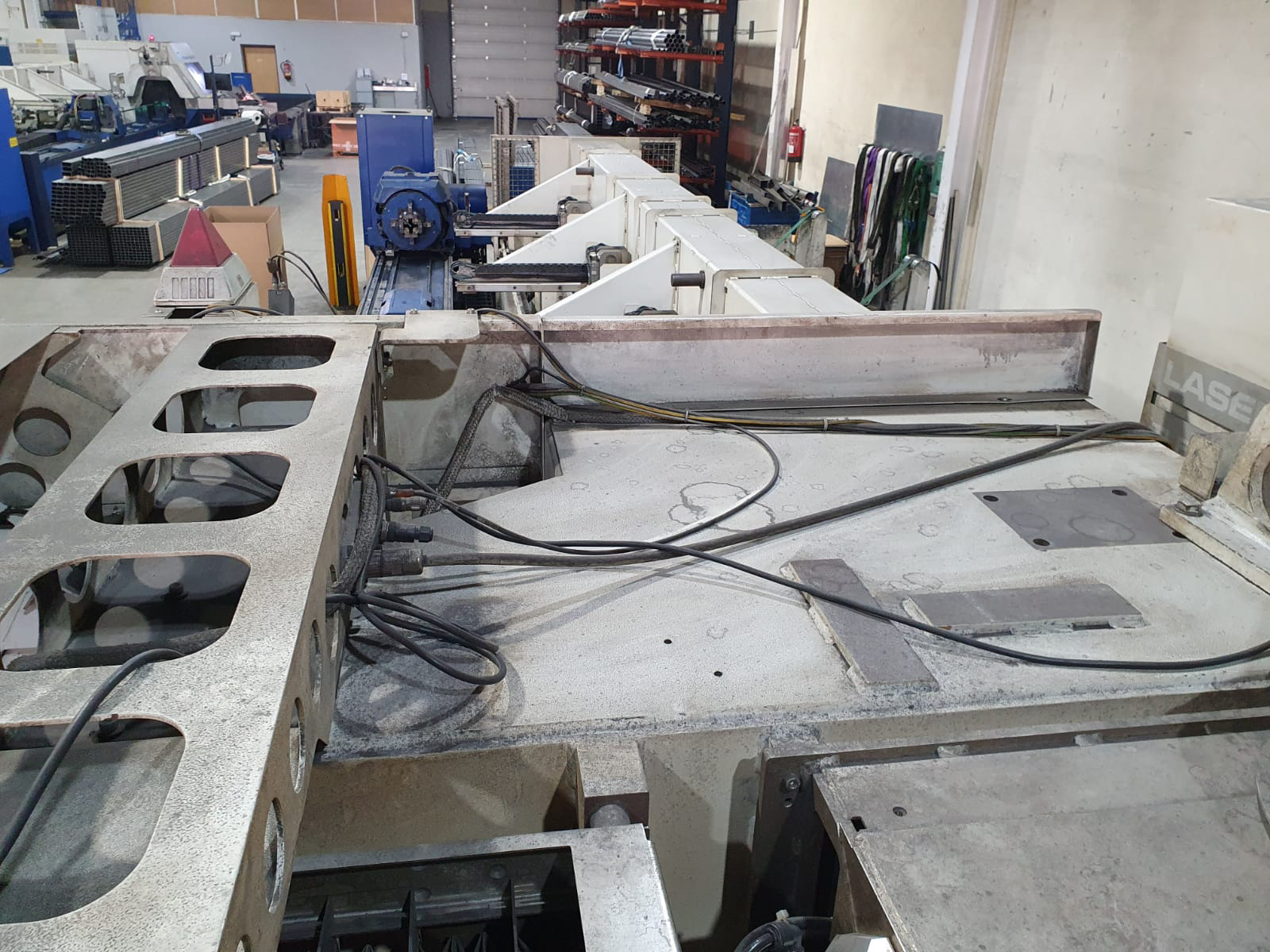

2005 TRUMPF TUBEMATIC 5000 Laser pipe cutting machine

Ref. 3428579687
Brands TRUMPF
Models TUBEMATIC 5000
Types of machine Laser pipe cutting machine
Category Laser tube cutting
Year 2005
Availability Sold

Technical Data

Beam ON Working hours14.657 / 4.925
ControlSiemens Sinumerik 840 D
Dimensions (long x wide x high)18.000 x 9.000 x 2.800 mm
Laser Output3,2 kW
Laser TypeCO2
Machine ON Working hours57.427
Max. finished part length3000 / 4500** / 6500**/ 8000** mm
Max. outer circle diameter of rectangular tubes170 mm
Max. outside diameter of round tubes152 mm
Max. raw material length for automatic loading6500 / 8000 mm
Max. workpiece weight20 (130 / 160** kg in total) kg
Maximum material thickness aluminium4 mm
Maximum material thickness mild steel10 mm
Maximum material thickness stainless steel5 mm
Weight17.700 kg
