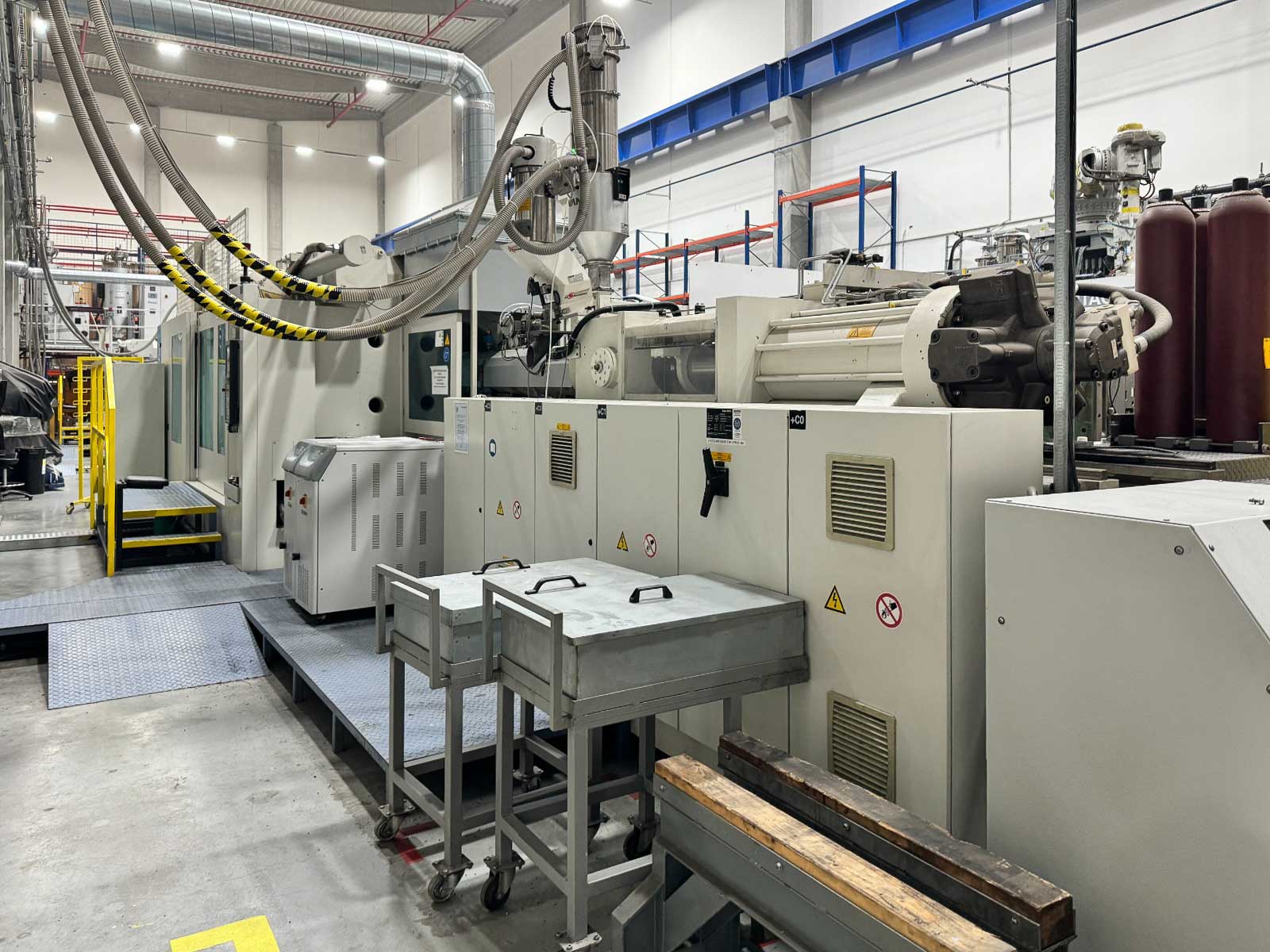

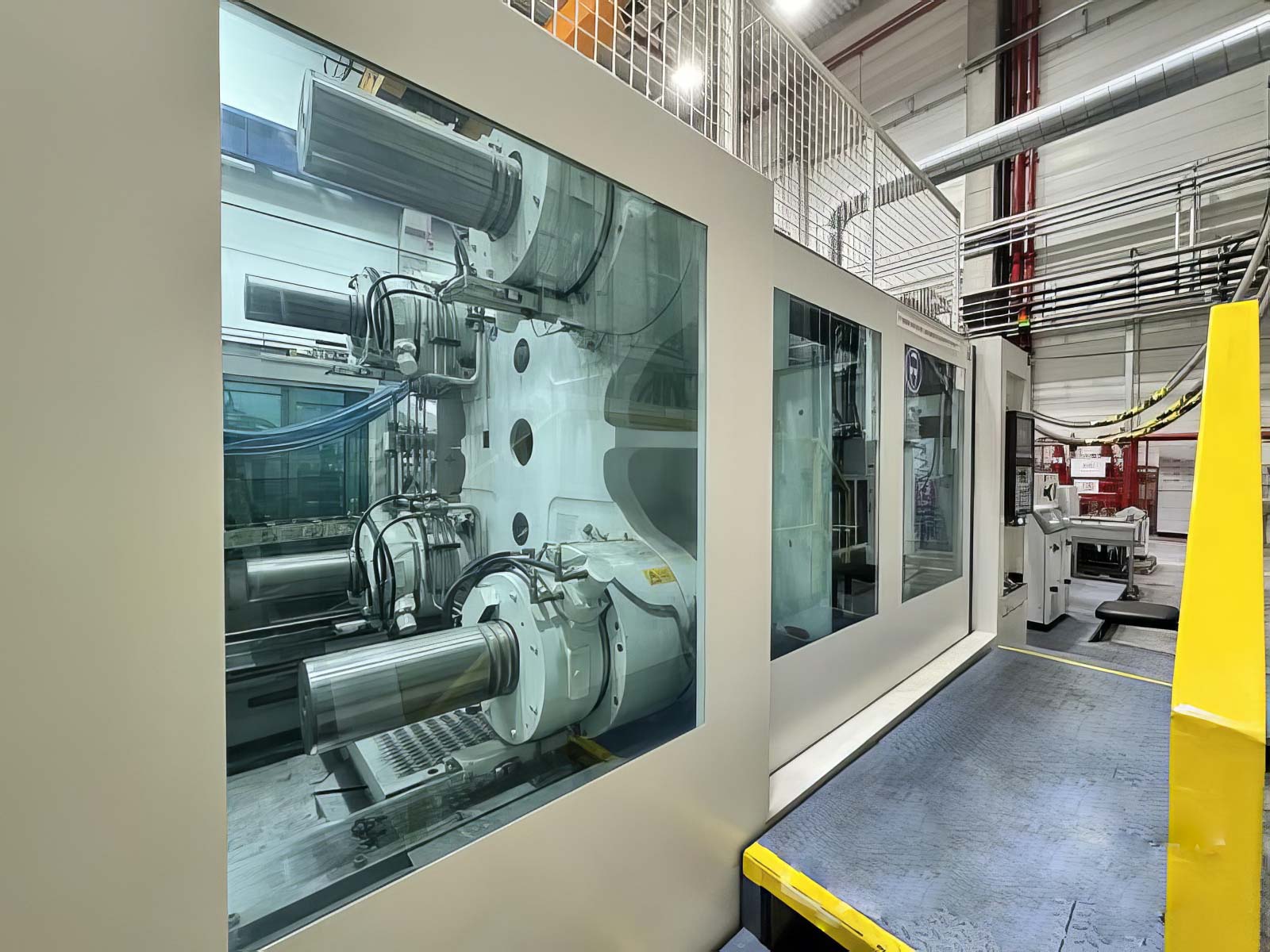

2011 KRAUSS MAFFEI KM 1300-8100 MX Injection molding machine 1300t

Ref. 3619945312
Brands KRAUSS MAFFEI
Models KM 1300-8100 MX
Types of machine Injection molding machine 1300t
Category 1000t or more Injection moulding machines
Year 2011
Availability Available
Request a quote

Technical Data

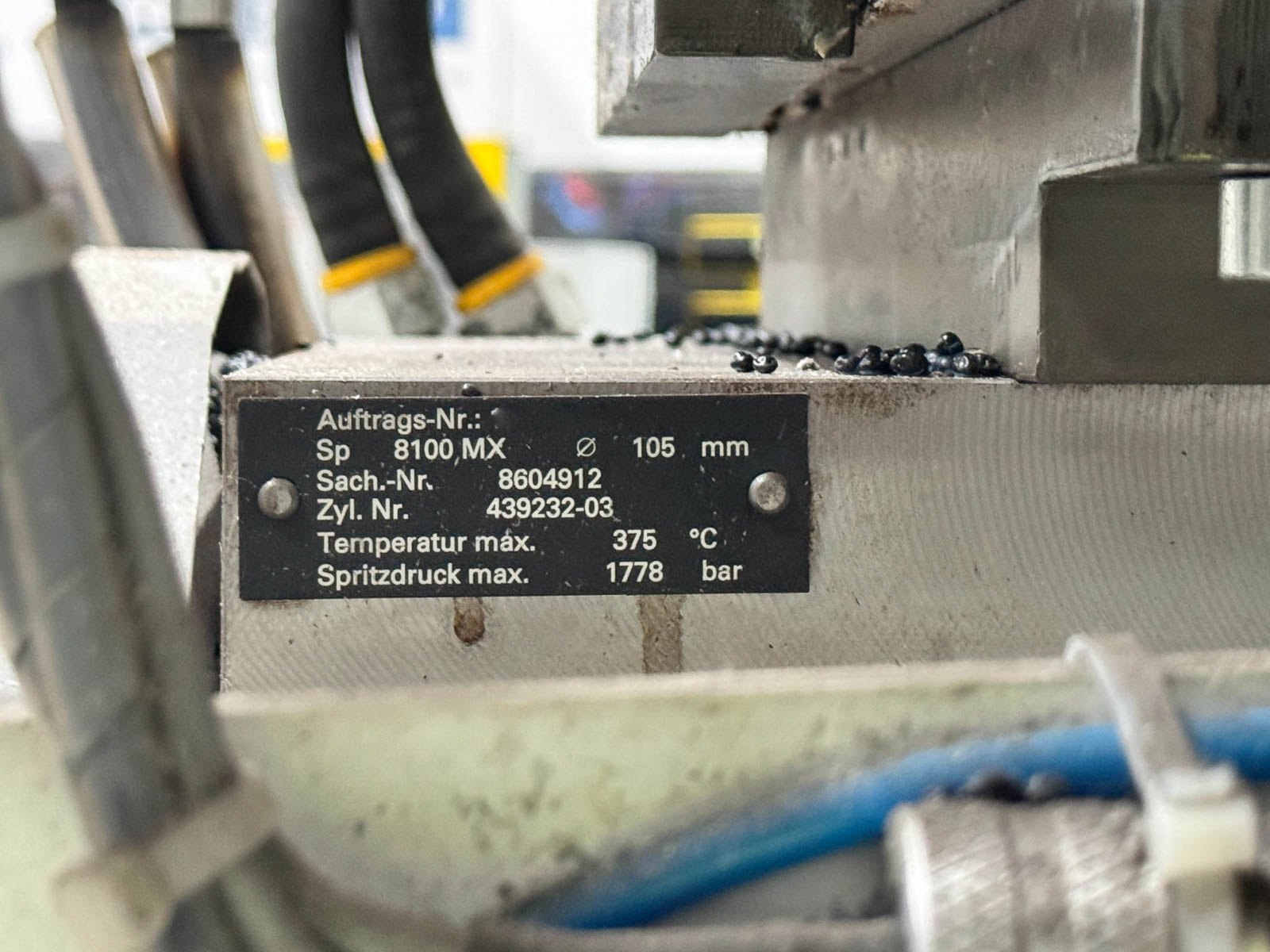

Screw diameter105 mm
Air Valves3 + 3
Cascades / Sequential valve gates6 + 6
Cascades / Sequential valve gates12
Clamping force13.000 kN

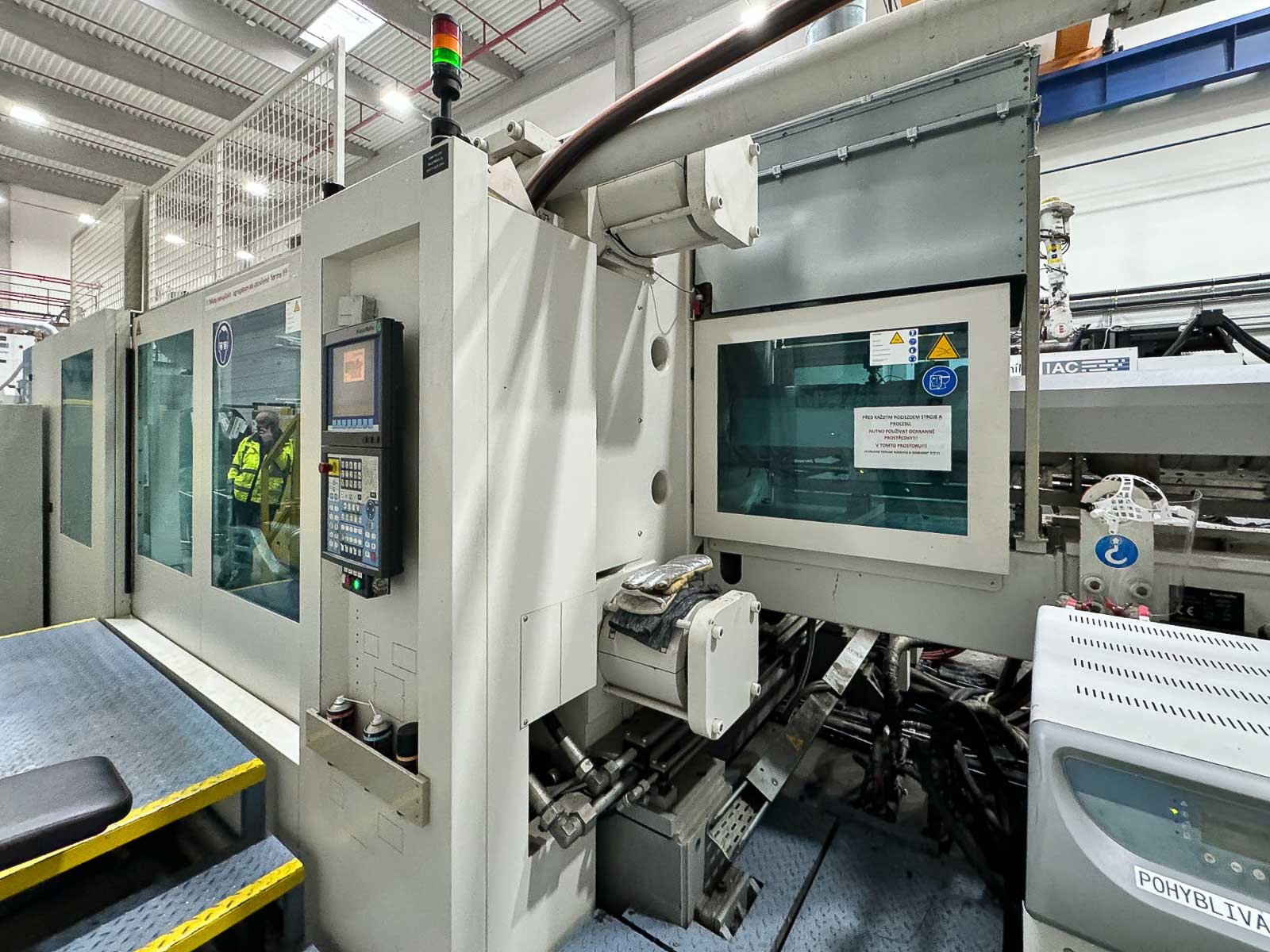

ControlMC6
Core pulls4 x 4
Daylight between platens max3.050 mm
Distance between tie-bars (h x v)1.550 x 1.250 mm
Ejector stroke / force max.350 / n/a mm / kN
Heating zones32 x mould
Injection pressure1.778 bar
Injection volume4.546 cm³
Mould height max1.400 mm
Mould height min700 mm
Mould opening stroke max2.350 mm
Operating hours32.000
Operating hours13.826
Platen size (h x v)2.210 x 1.910 mm
Weight64.000 kg
