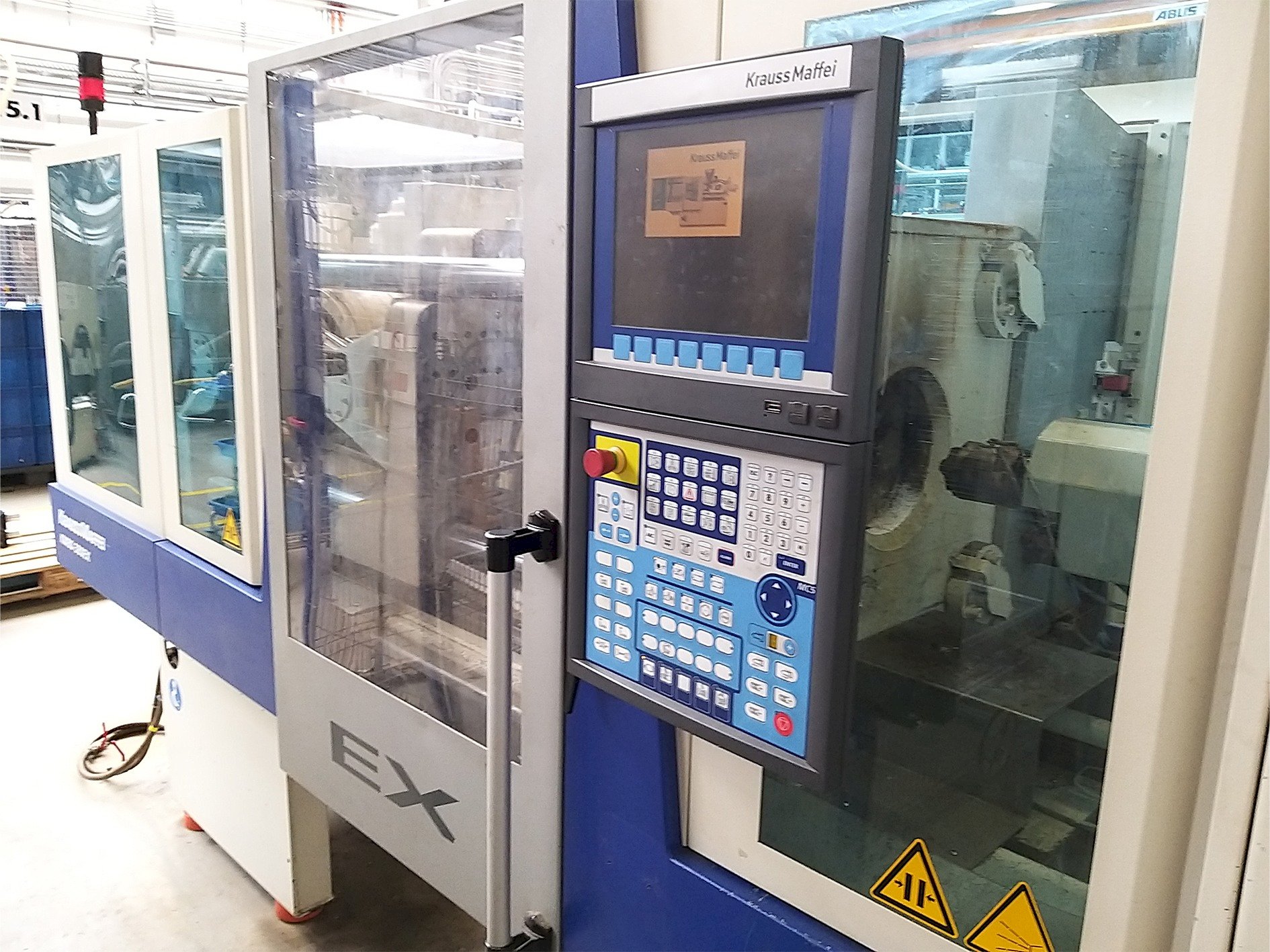

2006 KRAUSS MAFFEI EX 80 / 380 80t injection molding machine

Ref. 3611128125
Brands KRAUSS MAFFEI
Models EX 80 / 380
Types of machine 80t injection molding machine
Category 10 to 99t Injection moulding machines
Year 2006
Availability Available
Request a quote

Technical Data

Clamping force800 kN
Daylight between platens max790 mm
Dimensions (long x wide x high)5.000 x 1.500 x 2.100 mm
Distance between tie-bars (h x v)420 x 420 mm
Ejector force22 kN
Heating zones5
Injection pressure2.429 bar
Mould height max575 mm

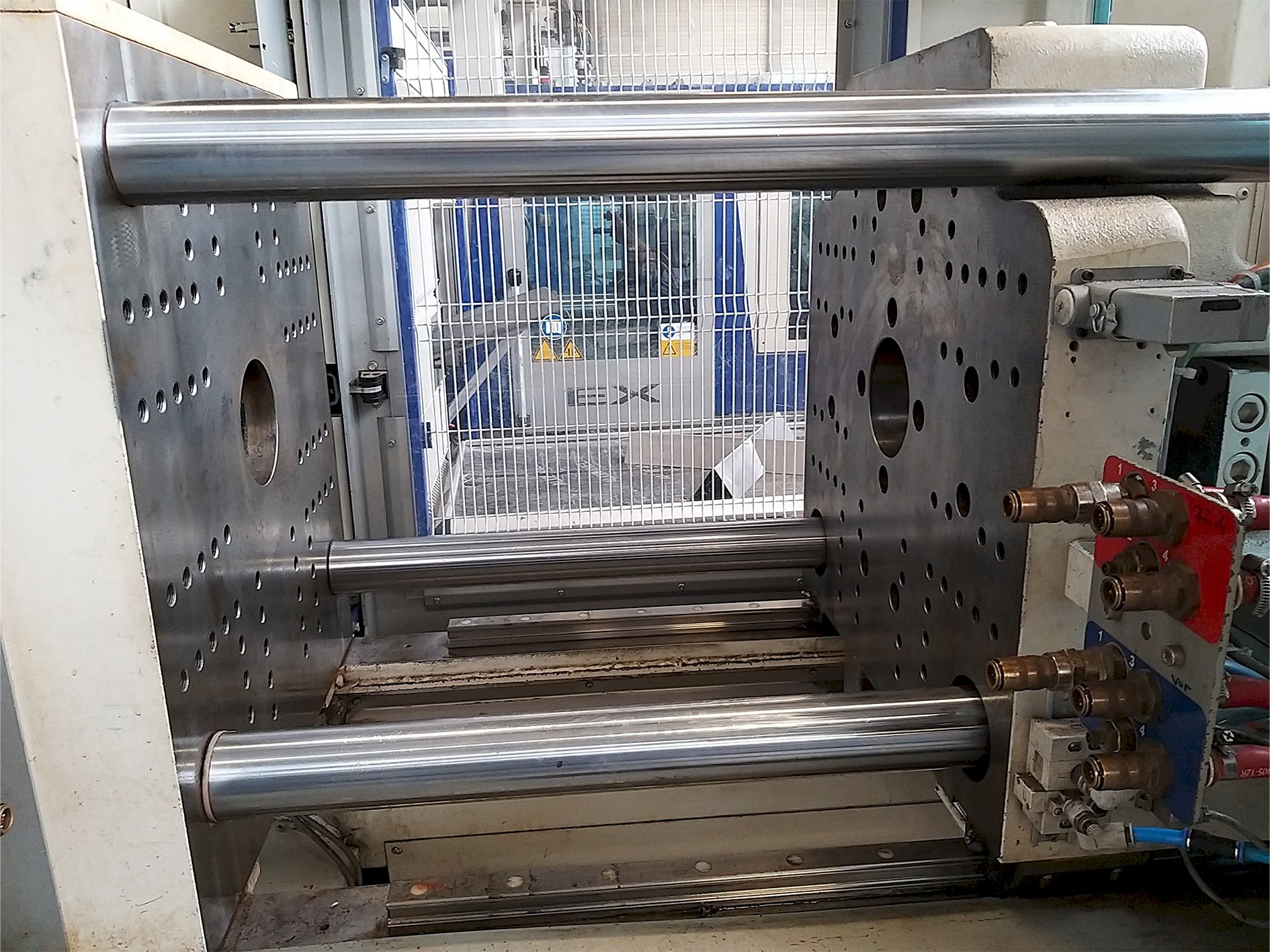

Platen size (h x v)640 x 640 mm
Power: installed max281 kW
Screw diameter35 mm
Screw speed477 rpm
Weight6.400 kg
