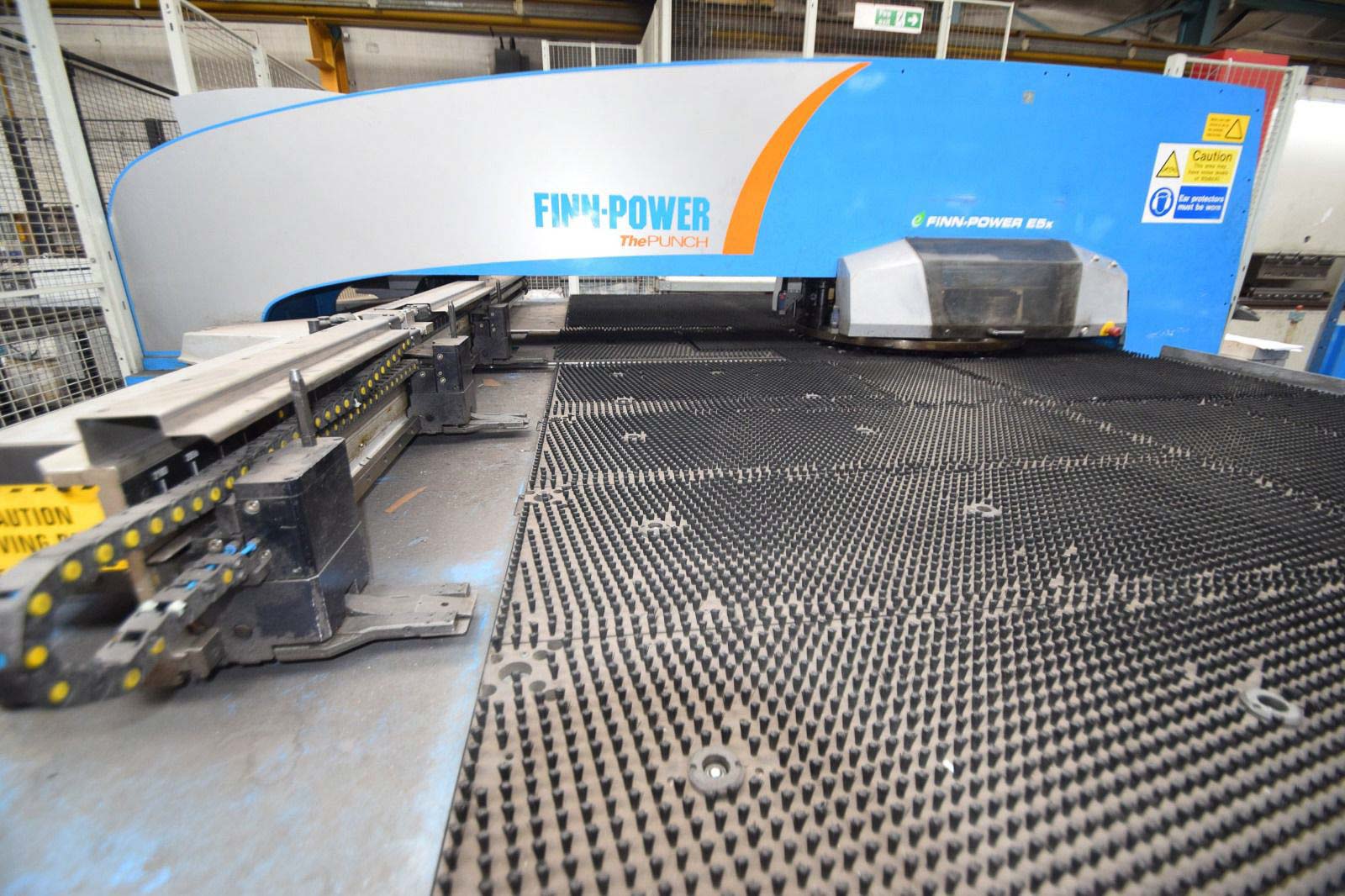

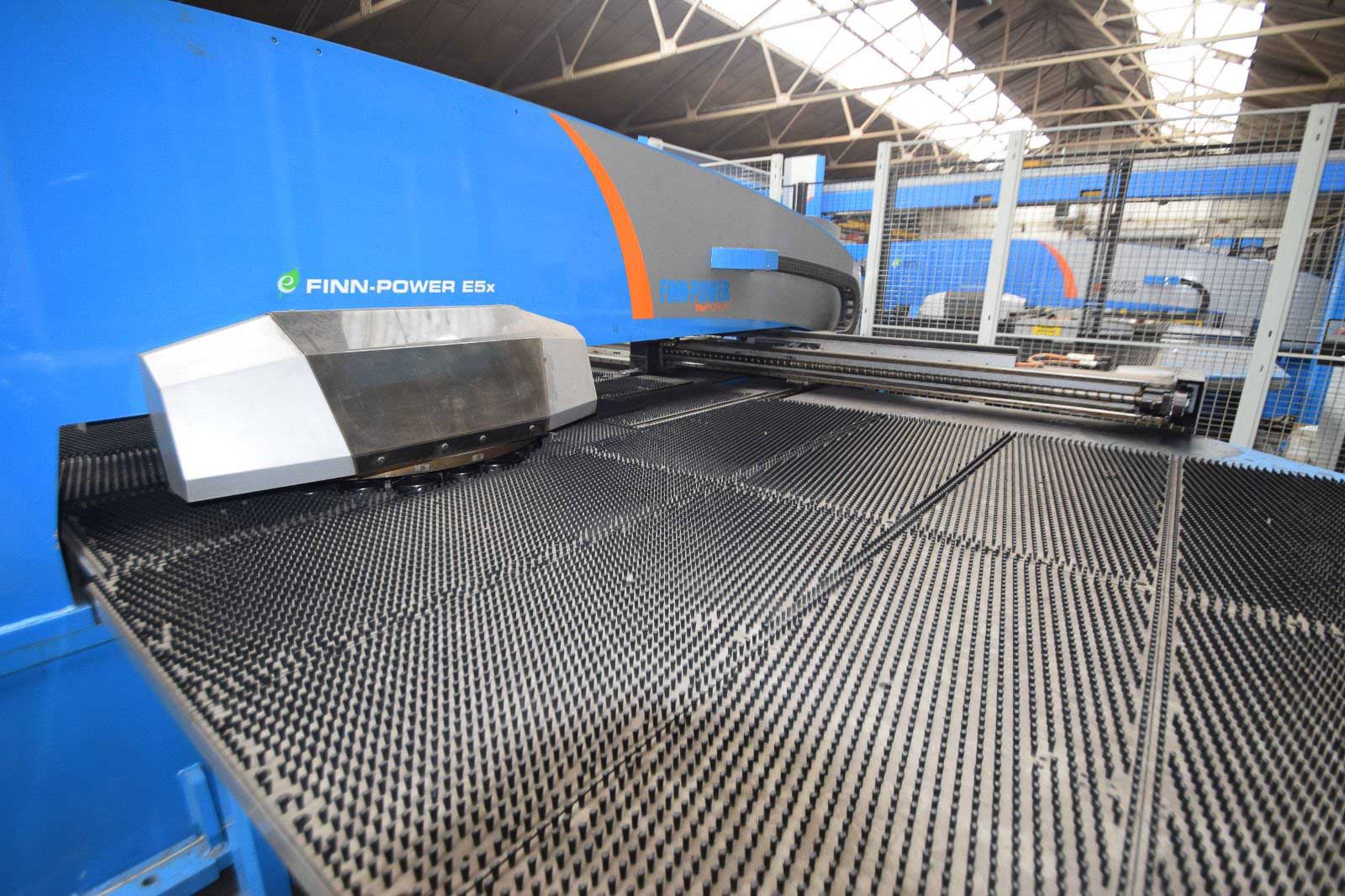

2010 FINN POWER E5X CNC punching machine

Ref. 3621578125
Brands FINN POWER
Models E5X
Types of machine CNC punching machine
Category Punching machines
Year 2010
Availability Available
Request a quote

Technical Data

Axis speed [X axis] max90 m/min
Axis speed [Y axis] max60 m/min
Dimensions (long x wide x high)7.800 x 6.900 x 2.200 mm
Material thickness (punching) max8 mm
Max. workpiece weight200 kg

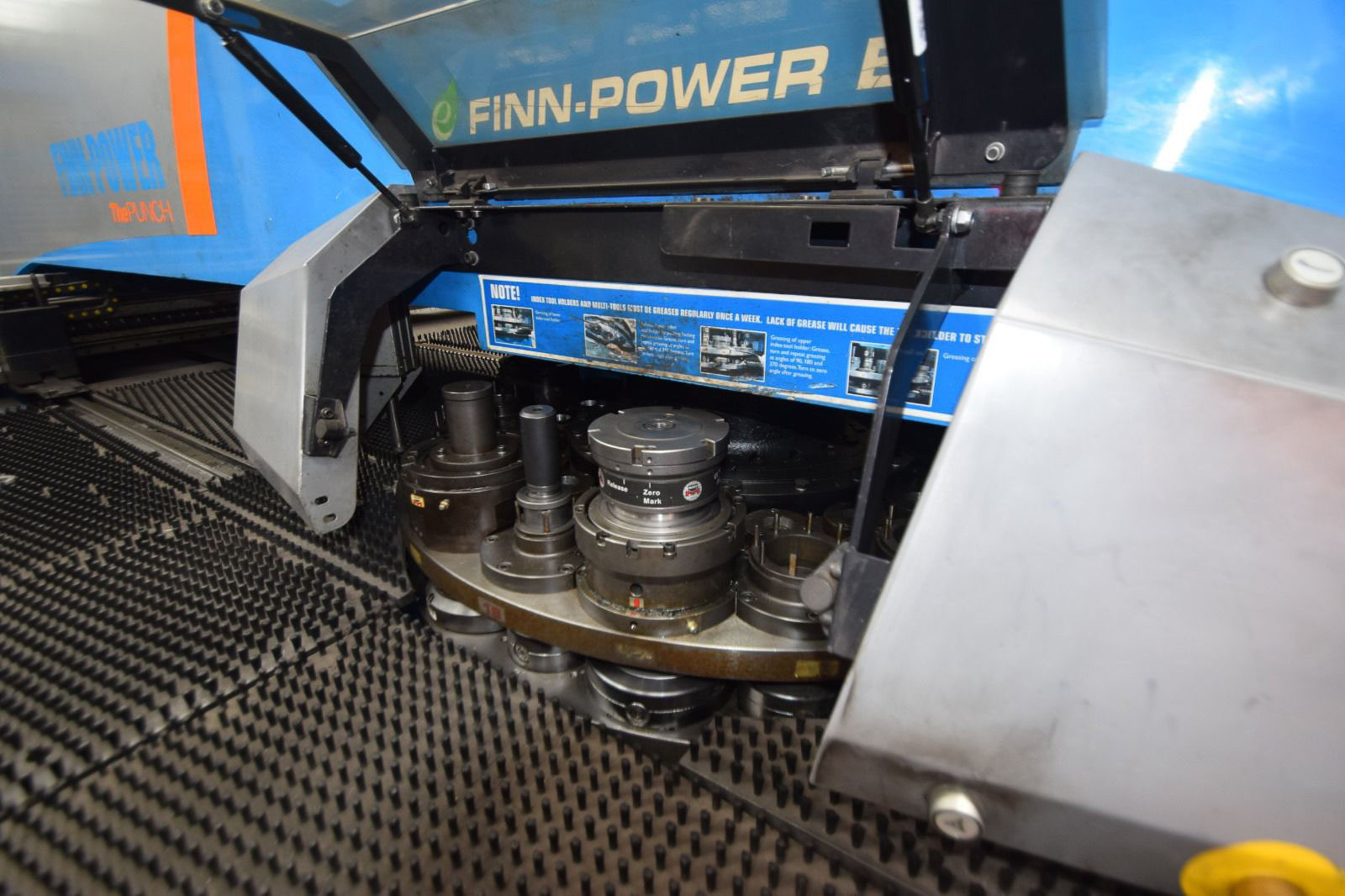

Number of turret stations (pcs)20
Power supply5 kVA
Punch diameter max89 mm
Punching force230 kN
Punching speed (Hit speed max.)700 1/min
Simultaneous positioning speed (X / Y)108 m/min
Working area max2.500 x 1.250 mm
