2004 AMADA HFP 170-4L CNC Bending machine
| Ref. | 3620598437 |
|---|---|
| Brands | AMADA |
| Models | HFP 170-4L |
| Types of machine | CNC Bending machine |
| Category | Bending machines |
| Year | 2004 |
| Availability | Available |
Technical Data
| Axes | 6 (X, Y1, Y2, R, Z1, Z2) |
|---|---|
| Bending length | 4.120 mm |
| Control | CD 2000 |
| Dimensions (long x wide x high) | 5.000 x 2.100 x 3.200 mm |
| Distance between uprights | 3.760 mm |
| Open Height | 620 mm |

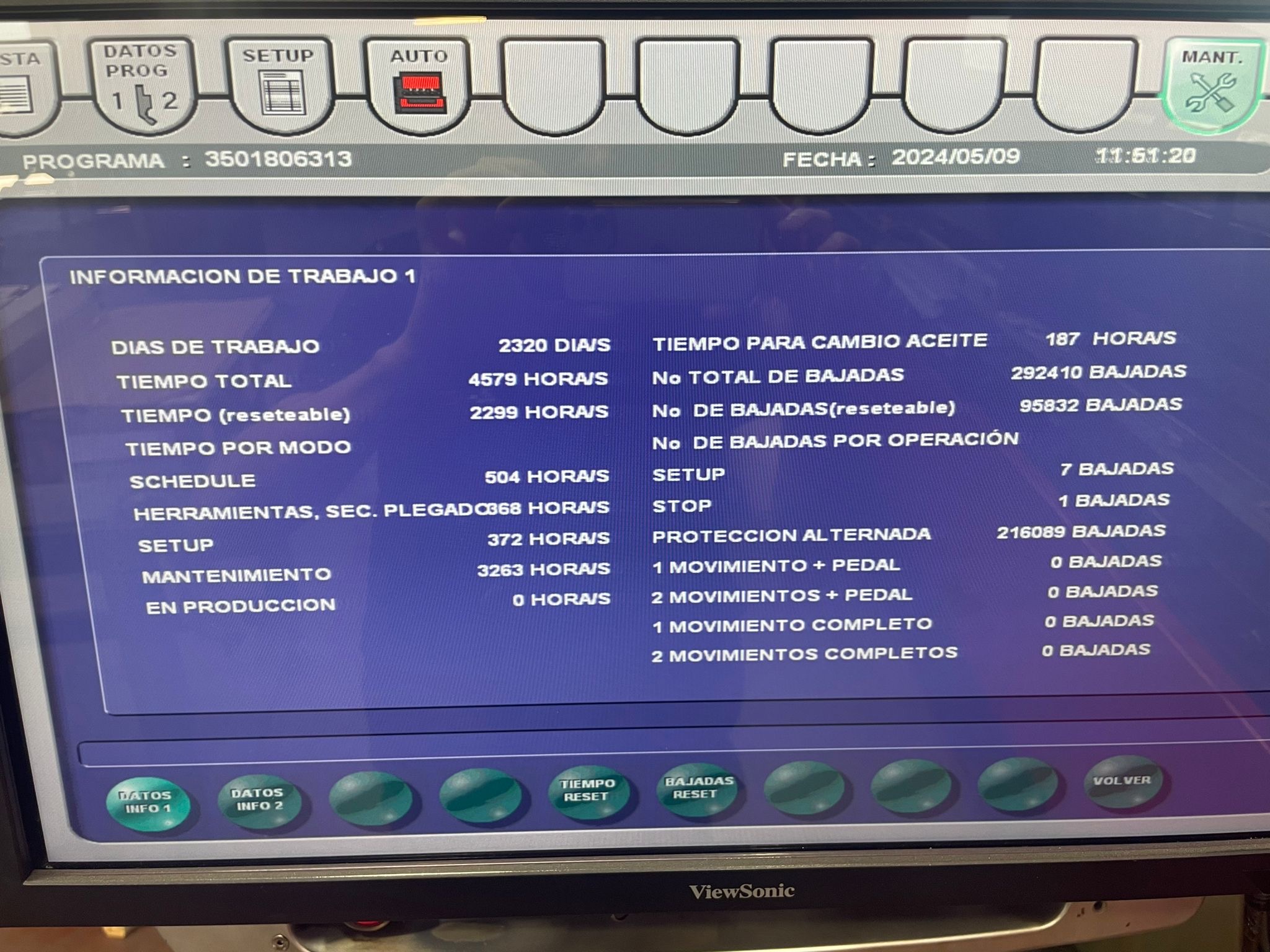

| Operating hours | 4.579 |
| Power: installed max | 16,5 kW |
| Pressure force | 170 t |
| Returning speed | 100 mm/seg |
| Stroke max | 170 mm |
| Throat | 420 mm |
| Weight | 14.800 kg |
| Working speed | 0-10 mm/seg |
